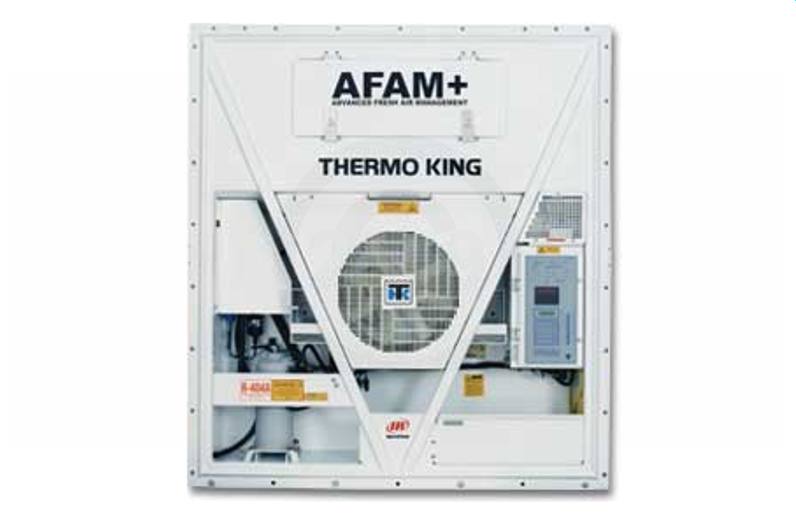

Thermo King Thermo King MAGNUM®
Request a Quote Financing Calculator Request a Brochure

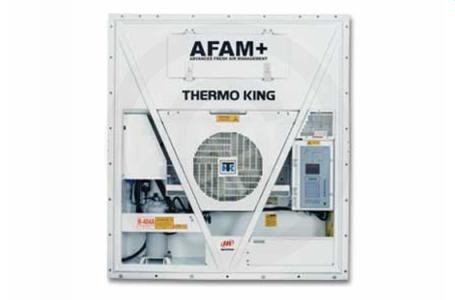

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview



  • Any box temperature (-35°C and above)
  • In any ambient temperature (even 50°C)
  • Less complexity/higher reliability
  • Continuous performance over time
Standard Features:
  • R-404A refrigerant
  • Compressor Scroll: Exclusive Copeland® Digital Scroll™ compressor with Digital Valave for capacity modulation, economizer circuit, ambient compensated internal overload and high temperature protection.
  • Type: Compliant Scroll (one staionary and one orbiting), with radial and axial compliance allowing tolerance to liquid refrigerant and debris
  • Rating: 6hp motor, 380/460V, 50/60 Hz
  • Construction: steel shell with rigid internal mount of scroll and motor
  • Oil: polyol ester
  • Finish: thermal sprayed aluminum
  • Microprocessor controller: The MP-3000 microprocessor controller provides thermostat, digital thermometer programming keypad, mode indicators, and a digital status readout window for displaying electronically recorded trip and cargo information
  • MP-3000 includes PTI programs, manual test, self-diagnostic test, advanced service information and service help functions
  • An optional USDA-approved data recorder records operating conditions up to 365 days
  • The controller contains the following basic features and components:
  • Backlit LCD digital display
  • Mode indication LEDs
  • Alarm indicator functions
  • Demand & timed defrost
  • Defrost cycle control
  • Internal self-checking/diagnostics
  • Pre-trip testing for reefer unit
  • Remote monitoring and data retrevial interface ports
  • Data recording
  • Electronic phase selection
  • 3-phase current monitoring & protection
  • Power consumption control to limit total unit power consumption
  • Proportional-integrated differential(PID) refrigeration capacity control system
  • Non-corrosive sea-going construction includes marine-treated aluminum alloy frame, non-corrosive fittings, all stainless steel hardware, condenser coil with epoxy e-coat and polyurethane top coat for UV protection, hydrophilic coating on evaporator coil, and a marine duty protective coating on the compressor
  • Condenser and evaporator fan motors include stainless steel shafts and internal thermal overload protection
  • CFC-free foamed-in-place insulation
  • Fresh air exchange adjustable from 0-285 m³/hr (0-150 ft³/min)
  • Unit wired for 380/460V, 3-phase, 50/60 Hz power supply with an 18 meter (60 ft) 11/4 power cable with CEE-17 plug
  • Bottom air discharge
  • Automatic electronic phase correction system
  • 29 Vac control system
  • Demand defrost and supplemental timed defrost with selectable intervals
  • Manual defrost initiation via MP-3000 keypad
  • Cool, Modulation Cool, Null, Heat, Defrost, In-Range and alarm indicator lights
  • Time delay start sequence
  • ABS certification
  • Composite condenser and evaporator fans
  • Conforms to ISO classifications and specification for thermal containers including racking and end loading standards, TIR specifications, ATP refrigeration standards, ARI standards for rating refrigeration capacity, UIC international Union of Railways, Australian Electrical Certification, British Standard 3755 Requirement (TAINT), USDA requirements for "Insect Cold" treatment, and Agrotechnological Research Institute (ATO-DLO) for flower bulb transportation
  • Auxiliary battery and charger
  • USDA "Cold Treatment" provision
  • Dehumidification on control
  • Bulb mode
Options:
  • AFAM+ Advanced Fresh Air Exchange Management
  • Water-cooled condenser
  • 4-pin remote monitoring receptacle
  • Thermo King electronic chart recorder
  • Partlow temperature recorder
  • Saginomiya temperature recorder
  • Remote monitoring
  • Transfresh provision
  • 10/4 power cable
  • Dual voltage transformer
Refrigeration Capacity: Scroll with R404A Zer-O system net cooling capacities at 37.8 degrees C (100 degrees F) ambient and 60 Hz electric power.
  • Degrees C: 21, Degrees F: 70, Watts: 15,822, KCal/hr: 13,608, Btu/hr: 54,000,
  • Degrees C: 2, Degrees F: 35, Watts: 12,309, KCal/hr: 10,584, Btu/hr: 42,000,
  • Degrees C: -18, Degrees F: 0, Watts: 7,327, KCal/hr: 6300, Btu/hr: 25,000,
  • Degrees C: -29, Degrees F: -20, Watts: 5,070, KCal/hr: 4360, Btu/hr: 17,300,
  • Degrees C: -35, Degrees F: -31, Watts: 4,099, KCal/hr: 3528, Btu/hr: 14,000,
Heating Capacity: System net heating capacity (including fan heat) with 60Hz electric power.
  • 5880 Watts (4984 KCal/hr, 19800 Btu/hr)
Weight: (with reciprocating compressor)
  • Unit: 926 lbs, 420 kg
Dimensions:
  • Unit Height: 88 in (2235 mm), Width: 79.8 in (2026 mm), Depth: 16.5 in (420 mm)
Evaporator Fan Airflow: High Speed
  • 60Hz: 12.7 mm (0.50 in) WG: 5,603 m³/hr, 3300 cfm
  • 60Hz: 19.0 mm (0.75 in) WG 5,094 m³/hr, 3000 cfm

Specifications

Capacities
Cooling Capacity @70°F: 54,000 Btu/hr, @35°F: 42,000Btu/hr, @0°F: 25,000Btu/hr, @-20°F: 17,300 Btu/hr, @-31°F: 14,000 Btu/hr
Heating Capacity 5880 Watts (4984 KCal/hr, 19800 Btu/hr)
Airflow
Airflow Volume Airflow: 60Hz: 12.7 mm (0.50 in) WG: 5,603m³/hr (3,300 cfm); airflow: 60Hz: 12.7 mm (0.50 in) WG: 5,603 m³/hr (3,300 cfm) and at 60Hz: 19.0 mm (0.75 in) WG 5,094 m³/hr (3,000 cfm)
General
Weight 926 lbs (420 kg)
Dimensions Height: 88 in (2235 mm), Width: 79.8 in (2026 mm), Depth: 16.5 in (420 mm)

Compare Models










Year 2009
Manufacturer Thermo King
Model Thermo King MAGNUM®
Style Container
Airflow
Airflow Volume Airflow: 60Hz: 12.7 mm (0.50 in) WG: 5,603m³/hr (3,300 cfm); airflow: 60Hz: 12.7 mm (0.50 in) WG: 5,603 m³/hr (3,300 cfm) and at 60Hz: 19.0 mm (0.75 in) WG 5,094 m³/hr (3,000 cfm)
Discharge Velocity (airthrow)
Capacities
Cooling Capacity @70°F: 54,000 Btu/hr, @35°F: 42,000Btu/hr, @0°F: 25,000Btu/hr, @-20°F: 17,300 Btu/hr, @-31°F: 14,000 Btu/hr
Heating Capacity 5880 Watts (4984 KCal/hr, 19800 Btu/hr)
Engine
Engine Type
Engine Model
Engine Rating
General
Weight 926 lbs (420 kg)
Dimensions Height: 88 in (2235 mm), Width: 79.8 in (2026 mm), Depth: 16.5 in (420 mm)
