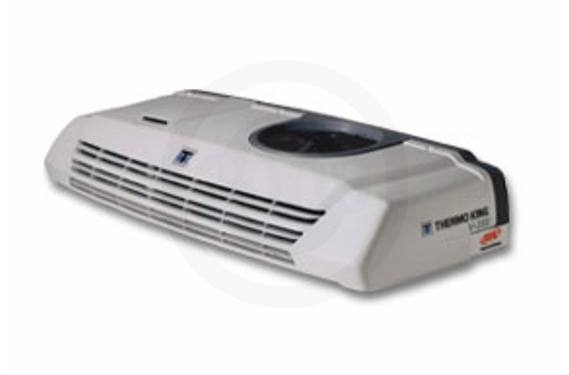

Thermo King V-200 MAX

Request a Quote

Financing Calculator

Request a Brochure

Request a Quote

Financing Calculator

Request a Brochure

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Aerodynamic styling
Durable polypropylene skin with no visible screws
High cooling capacity on the road
High cooling capacity on electric standby
Designed for deep frozen or chill applications
Ultra Slim evaporator for maximum load space and high airflow volume for superior temperature control
The new speedy clip system for hoses and connections for increased reliability and ease of installation
Low noise
Standard 1 year warranty and 2 year Thermo Gard Bronze preventative maintenance program

Standard Features

Jet Lube™ compressor lubrication
Jet Cool™ compressor injection cooling
In-cab controls with digital LED thermometer
Automatic hot gas defrost
Electronic thermostat

Specifications

The V-200 MAX Thermo King refrigeration unit comprises a two-piece split unit designed for fresh, frozen and deep frozen applications on small trucks and vans. On compressor is powered by the vehicle's engine, while the second is powered by an electric motor, making it possible to use electric stand-by to drive the unit. Models with heating are also available.
Refrigeration Capacity (Air Return On the Road) - 35 deg F (2 deg C): 7160 btu/hr (2100 watts)
Refrigeration Capacity (Air Return On the Road) - 0 deg F (-18 deg C): 4775 btu/hr (1400 watts)
Refrigeration Capacity (Air Return On the Road) - -20 deg F (-29 deg C): 3170 btu/hr (930 watts)
Refrigeration Capacity (Electric standby 60Hz) - 35 deg F (2 deg C): 5250 btu/hr (1540 watts)
Refrigeration Capacity (Electric standby 60Hz) - 0 deg F (-18 deg C): 3410 btu/hr (1000 watts)
Refrigeration Capacity (Electric standby 60Hz) - -20 deg F (-29 deg C): 2265 btu/hr (665 watts)
Refrigerant: HFC R-404A (1.25 kg)
Refrigerant: Chlorine: Zero (non ozone depleting)
Defrost: Automatic hot gas defrost
Compressor (Engine Driven): Number of cylinders: 6
Compressor (Engine Driven): Displacement: 8.0 cu in (131.0 cm³)
Compressor (Engine Driven): Speed Max recommended: 3,000 rpm
Compressor (Engine Driven): Jet Lube™ and Jet Cool™ compressor lubrication and cooling systems
Evaporator Blower Performance: Evaporator fan performance at 0 in. (0 mm) water column external static pressure
Evaporator Blower Performance: Airflow volume: 650 cfm (1100 m³/h)
Electric Motors: dc voltage options: 12Vdc
Electric Motors: Electric stand-by options: 230V/3-Phase/60Hz, 230V/1-Phase/60Hz, 115V/1-Phase/60Hz
Electric Motors: Total current consumption on the road: 12Vdc - 28A
Electric Motors: Total stand-by current consumption: 230V/3-Phase/60Hz: 7.9A
Heat Options: Engine coolant heat for 10 models
Heat Options: Engine coolant plus 115V or 230V heat strips for 20 models
Weight: (Condenser): 154 lbs. (70 kg)
Weight: (ES200 Evaporator): 20 lbs. (13 kg)
Weight: (Installation Kit): 44 lbs. (20 kg)
Dimensions (Condenser): Height: 7.9 in. (200 mm); Width: 46.5 in. (1180 mm); Depth: 19.1 in. (485 mm)
Dimensions (Evaporator): Height: 5.1 in. (130 mm); Width: 38.2 in. (970 mm); Depth: 20.2 in. (512 mm)
Dimensions (In-Cab Controls): Height: 2.0 in. (52 mm); Width: 5.2 in. (130 mm); Depth: 4.3 in. (108 mm)

System Components

Condenser
Engine driven compressor
Ultra Slim Evaporator ES200 MAX
Installation kit
In-cab control box

Specifications

Capacities
Cooling Capacity	Air Return On the Road - 35 deg F (2 deg C): 7160 btu/hr (2100 watts), 0 deg F (-18 deg C): 4775 btu/hr (1400 watts), 20 deg F (-29 deg C): 3170 btu/hr (930 watts); Electric standby 60Hz - 35 deg F (2 deg C): 5250 btu/hr (1540 watts), 0 deg F (-18 deg C): 3410 btu/hr (1000 watts), -20 deg F (-29 deg C): 2265 btu/hr (665 watts)
Airflow
Airflow Volume	650 cfm (1100 m³/h)
Engine
Engine Type	12Vdc
General
Weight	Condenser: 154 lbs. (70 kg); ES200 Evaporator: 20 lbs. (13 kg); Installation Kit: 44 lbs. (20 kg)
Dimensions	Condenser: Height: 7.9 in. (200 mm); Width: 46.5 in. (1180 mm); Depth: 19.1 in. (485 mm), Evaporator: Height: 5.1 in. (130 mm); Width: 38.2 in. (970 mm); Depth: 20.2 in. (512 mm), In-Cab Controls: Height: 2.0 in. (52 mm); Width: 5.2 in. (130 mm); Depth: 4.3 in. (108 mm)

Compare Models

Airflow

Year	2009
Manufacturer	Thermo King
Model	V-200 MAX
Style	Small Truck
Airflow Volume	650 cfm (1100 m³/h)
Discharge Velocity (airthrow)
Capacities
Cooling Capacity	Air Return On the Road - 35 deg F (2 deg C): 7160 btu/hr (2100 watts), 0 deg F (-18 deg C): 4775 btu/hr (1400 watts), 20 deg F (-29 deg C): 3170 btu/hr (930 watts); Electric standby 60Hz - 35 deg F (2 deg C): 5250 btu/hr (1540 watts), 0 deg F (-18 deg C): 3410 btu/hr (1000 watts), -20 deg F (-29 deg C): 2265 btu/hr (665 watts)
Heating Capacity
Engine
Engine Type	12Vdc
Engine Model
Engine Rating
Maintenance Interval
General
Weight	Condenser: 154 lbs. (70 kg); ES200 Evaporator: 20 lbs. (13 kg); Installation Kit: 44 lbs. (20 kg)
Dimensions	Condenser: Height: 7.9 in. (200 mm); Width: 46.5 in. (1180 mm); Depth: 19.1 in. (485 mm), Evaporator: Height: 5.1 in. (130 mm); Width: 38.2 in. (970 mm); Depth: 20.2 in. (512 mm), In-Cab Controls: Height: 2.0 in. (52 mm); Width: 5.2 in. (130 mm); Depth: 4.3 in. (108 mm)
